3D Printing - My First Tank!

As printing tanks was my primary excuse for buying the 3D Printer  I thought I'd better not leave it too long to try this out.

The internet is a remarkable source for all manner of things. This includes an almost dazzling supply of 3D printable files for all different types of tanks, guns, terrain pieces etc. in any scale you fancy!

I started modestly with a search in Thingiverse that revealed a collection of 1/200th AFVs created by Marco Bergman, and shared most generously, free of charge to anyone who wants to use them privately. (https://www.thingiverse.com/thing:232248)

I decided to start with the US M1A1 so downloaded the .stl file and converted it to .gcode in Cura.

The file as downloaded had the hull and turret stood on end, gun and bow facing upwards. This is probably a sensible way to go as many printers (mine included) have quite limited print bed sizes. However for reasons known only to myself, I decided to lay both parts flat and print them side by side. The picture below shows how that progressed.

  1. The print started with creating a "raft" to support the finished parts. This helps to ensure good adherence to the bed (but doesn't guarantee it!)
  2. The supporting ribs for the underside of the turret are starting to appear here. These are easily re,moved afterwards.
  3. Another view of the turret building up layer by layer
  4. The almost completed turret has now appeared
  5. The settings used on my printer, showing the 1.75 hour build time!

Here you can see the hull & turret from above, still attached to the "raft"

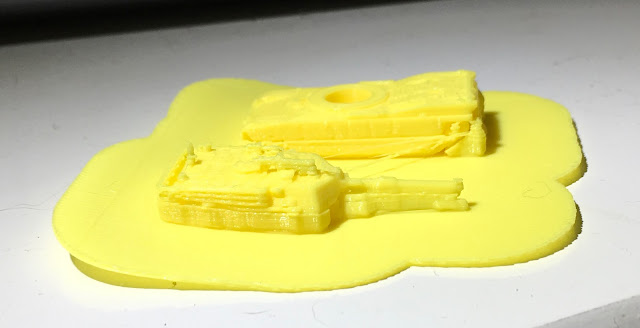

This side on shot illustrates the supporting material that fills the turret underside

This side view shows the support material under the rear tracks and over the wheels


Once I'd removed the support material, I was amazed to find the detailed running gear down each side beneath the bazooka plates.


Here you can see the ribbed effect you can get through the build up of layers of extruded plastic. This is more pronounced on a smaller model as I chose 0.15mm layers where I could have chosen 0.1mm. Don't forget this tank is only 30mm long!

I have in my collection a number of 1/200 M1's. Below is a comparison shot alongside a Skytrex Action 200 model. Slightly shorter, but not a bad match.



I painted the finished model and based it on mdf to match the others in my collection.


For a first effort I think it's quite acceptable. Remembering that when viewed on the tabletop the ribs are all but invisible to someone as old as me!


I hadn't previously considered printing models to this scale, I was expecting to be going for 15mm scale, bit I'm pleasantly surprised at the quality. I doubt very much this will be the last one I print at 1/200th scale.
